These series of thermometers are designed for installa- tion inpipes, vessels, plant and machinery.Stem and case are made of stainless steel 304.To allow fitting to the process, different insertion lengths and process connections are available.Thermowells are recommended for pressure, corrosive fluid or high velocity applications.
Product Details
| Model Number | LFPT series |
| Name | Liquid filled bimetal thermometer, shock proof bimetal thermometer |
| Stem | 6.35mm* 1.5"(within thread) |
| Type | Bimetal Thermometer |
| Connection | Back Connection |
| Bezel | Crimped,closed type |
| Material | All Stainless Steel 304 |
| Thread | 3/8"NPT (customized) |
| Dial Size | 1-3/8",2"... |
| Temperature Range | 0-150C&F (customized) |
| Accuracy | ±1% of full scale |
| Fillable | Silicon oil or glycerine available |
| Lens | Glass |
| Packaging | Shakeproof |
| Enclosure Rating | IP65 |
| Standard | ASME B40.200-2008, EN13190:2001 |
| Field | Industry, petroleum, chemical, motorcycle, hot stove, incubator, etc |

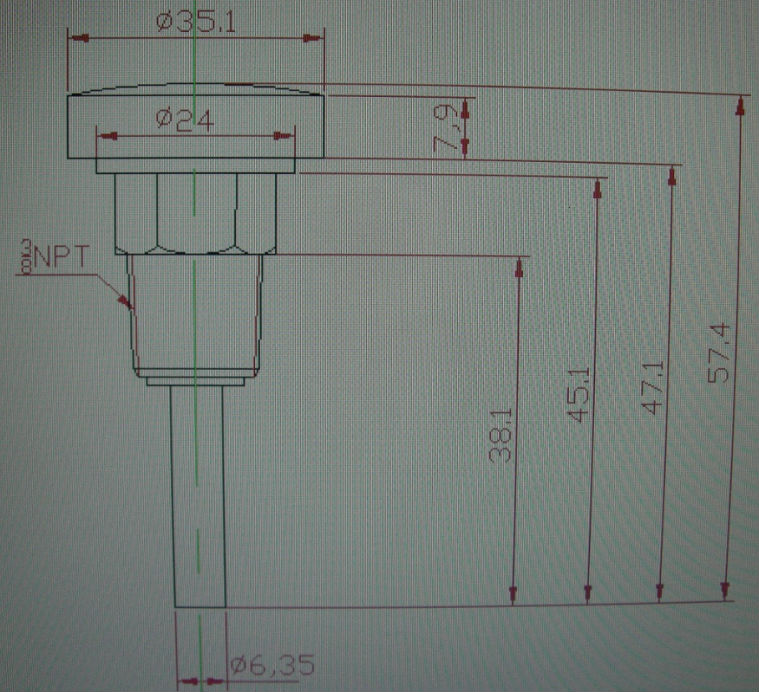

| Drawing |
 |
