These series of thermometers are designed for installa- tion inpipes, vessels, plant and machinery.Stem and case are made of stainless steel 304.To allow fitting to the process, different insertion lengths and process connections are available.Thermowells are recommended for pressure, corrosive fluid or high velocity applications.
Product Details
| Model Number | A type |
| Name | Adjustable Bimetal Thermometer,Every angle Thermometer |
| Dial Size | 5" (3",4",5", and 6" available), aluminum material, dish shape |
| Case | SS 304 stainless steel |
| Lens | Glass standard, Shatterproof Glass Len Is Available |
| Bezel | SS 304 stainless steel, hermetically sealed or detachable |
| Pointer | Aluminum, painted black |
| Movement | Bi-metallic coil imported from US |
| Stem OD | 6.35mm |
| Stem Length | Customized |
| Connection | Every angle |
| Thread | 1/2"NPT (BSP available) |
| Accuracy | +/-1.5% full scale standard; +/-1% full Scale Available |
| Range | From -80 C/0 C And 0 C/550 C (customized) |
| Fillable | Silicon oil or glycerine available |
| Packaging | Shakeproof |
| Enclosure Rating | IP65 |
| Standard | ASME B40.200-2008,EN13190:2001 |
| Field | Pipeline,surface,industrial,oil,chemical,power station,marine,etc. |

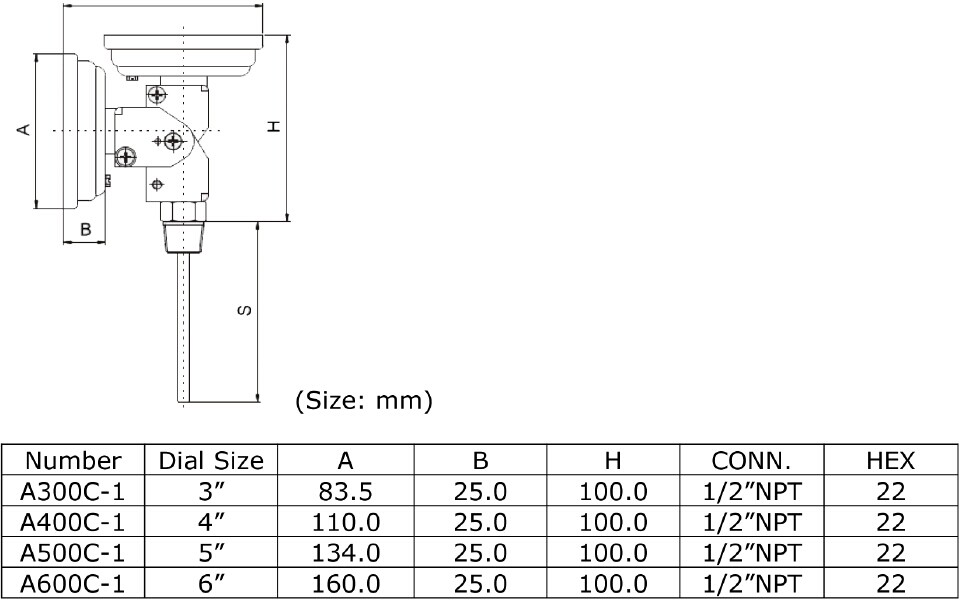

| Drawing |
|
